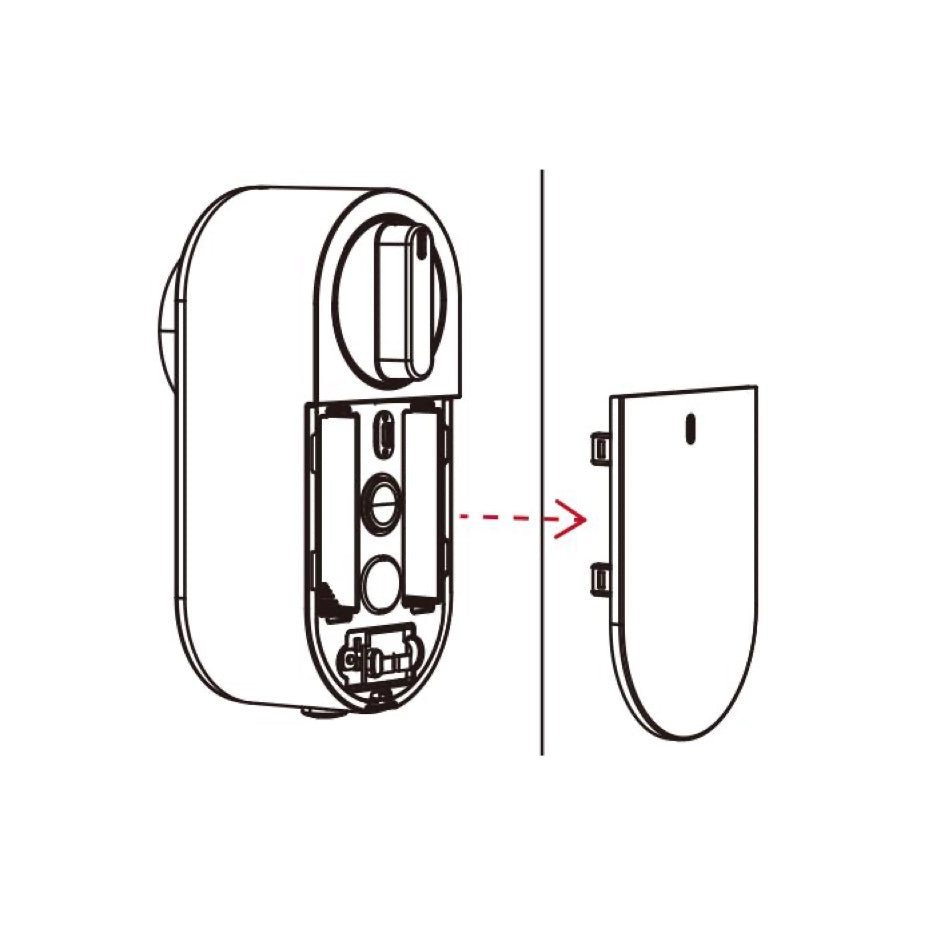

1.Remove the battery cover.

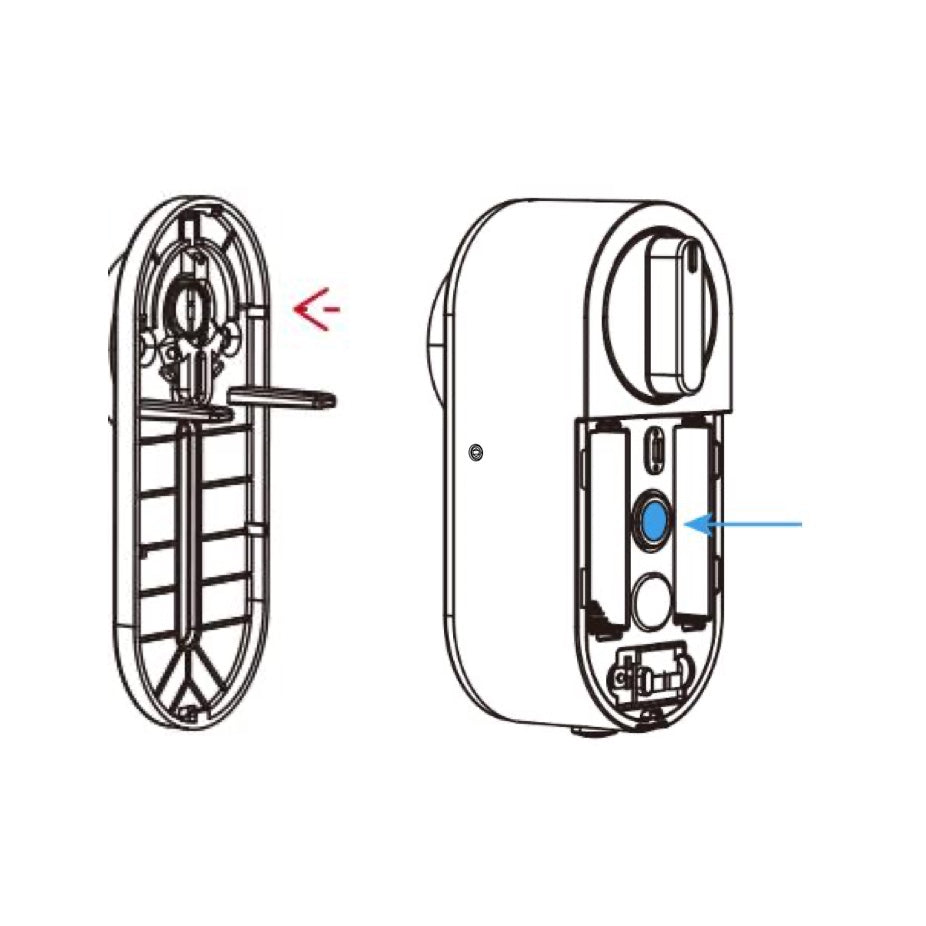

2.Press and hold the button, then remove the plate.
Press the button in blue to remove plate

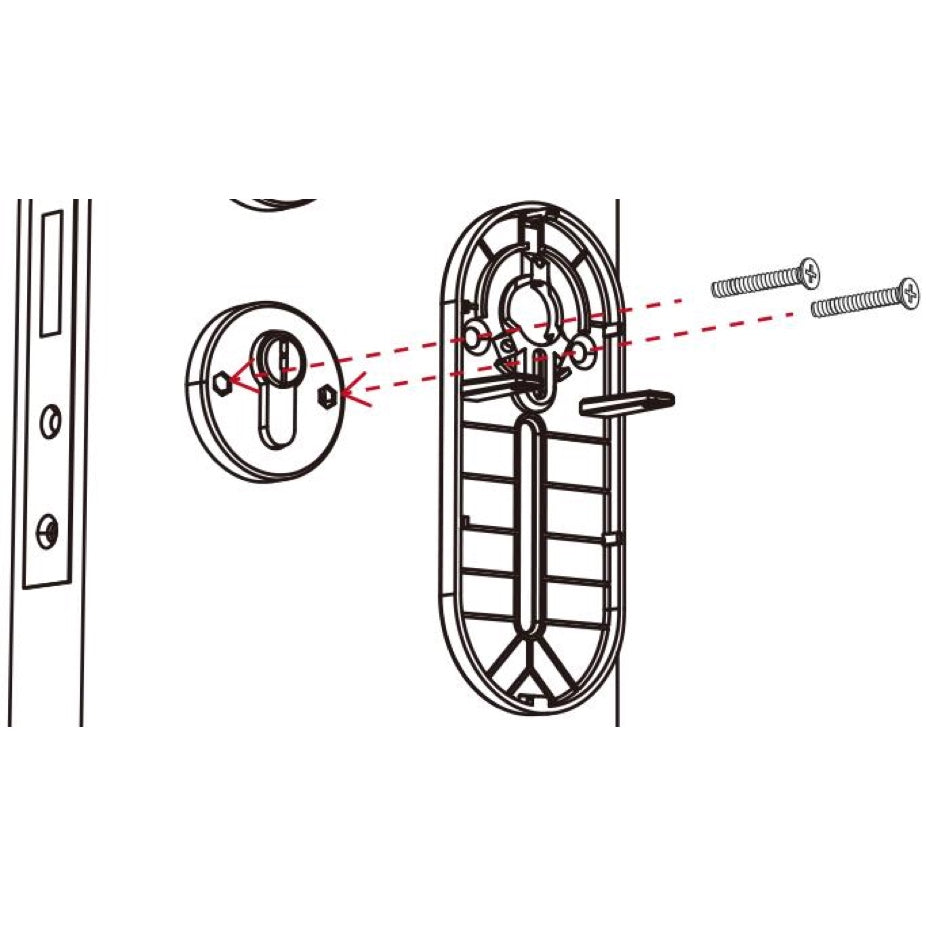

Install screws and the key.
Keep The deadbolt always in and the key vertical

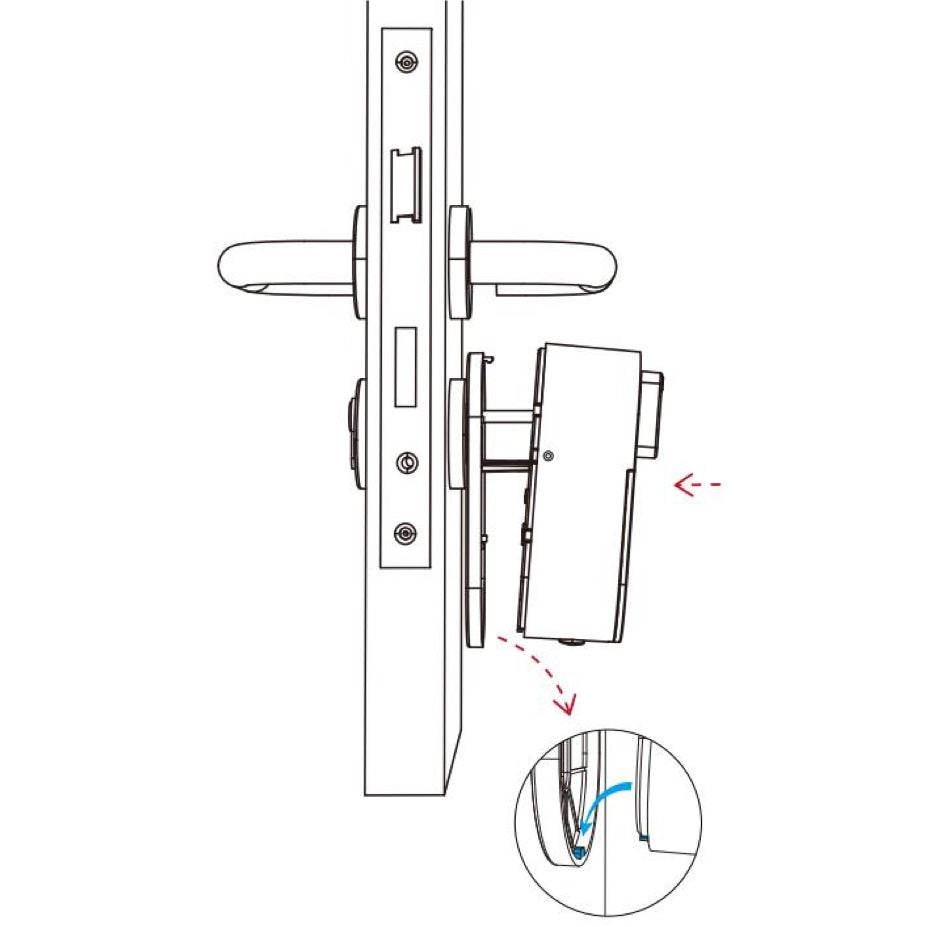

1.Install Interior Assembly.

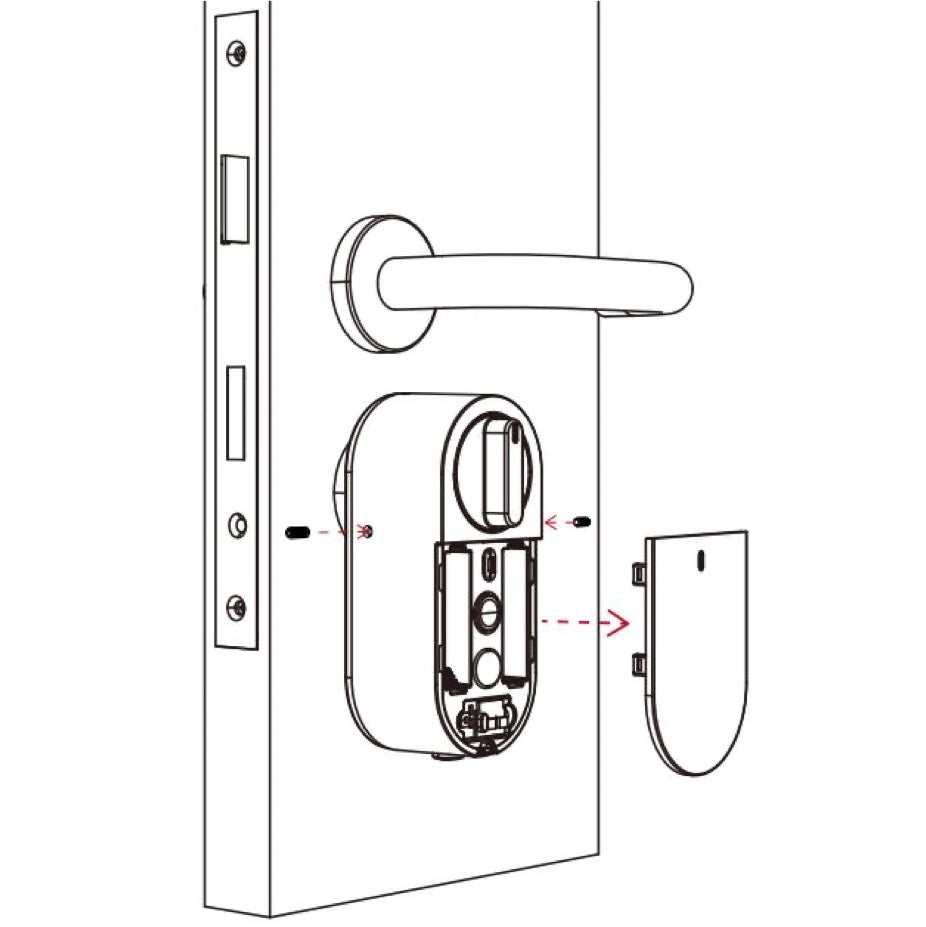

2.Fix Interior Assembly with 2 screws.
3. Keep the lock in open position

Keep knob vertical,and Protrusion of knob facing upward and o

1.Install the sensor on the door frame at the bottom level of the Eva Mini

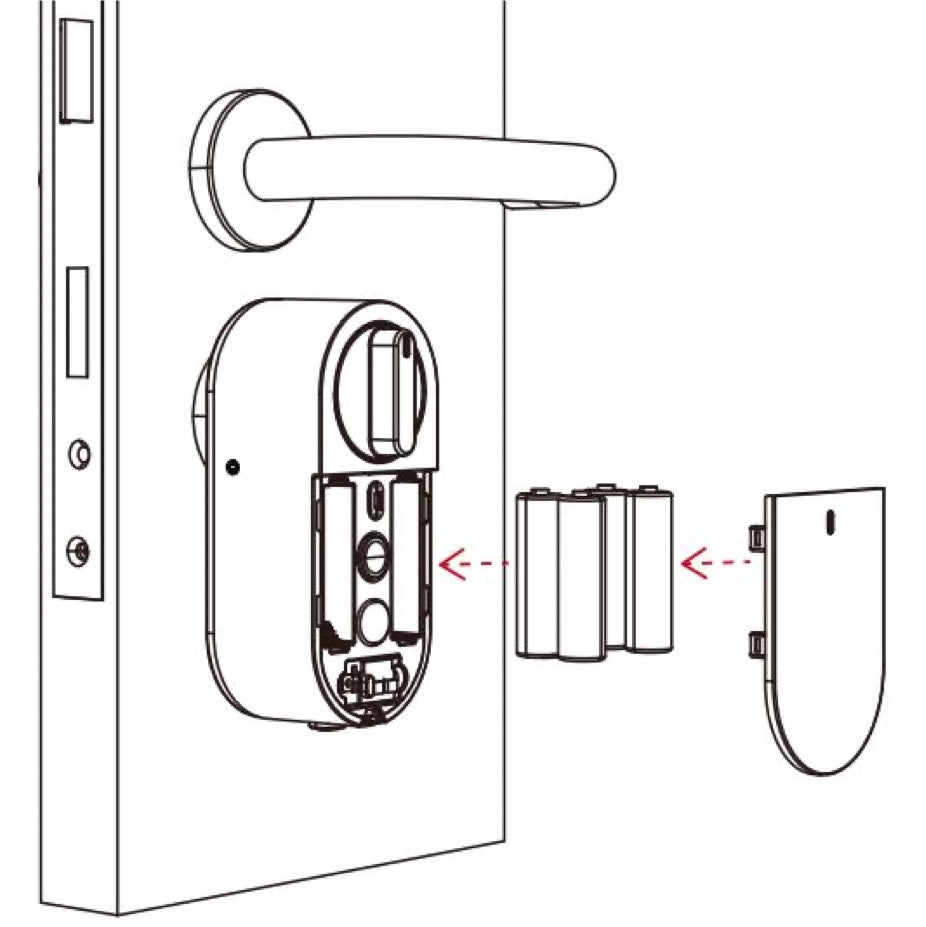

2.Install 4 batteries and the battery cover.
3.Close the door and wait for motor to activate

Open and Close the door if it doesn't activate

Press the button like the picture, and slide the panel.

1. Loosethescrew
2. Insert the battery and tighten the screw

1.Press and slide up the panel
2. Glue with the 3M tape or/and add screws

Note: The Keyboard should be less than 2 meters away from Smart Lock

1.Download the TTLock app directly on your phone through app Store or Google Play or Scan the QR Code.
2.Register a new account if you don't have already a TTLock account

1.In the Device Page click on + in the top right corner
2.Choose All Locks
3.Add the devices with +
4.Name the device to your preference

Do the same for Keyboard

Note:If the lock cannot be added in the above steps, please close the mobile app and Bluetooth, reopen the app and Bluetooth, and repeat the steps to add the lock.You must choose to connect on 2.4G WIFI what you need.

Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click on the lock Icone to test connectivity

Note: the phone is within 5 meters from the door lock and there should be no walls or other obstacles in between.

1.Find Admin Password under Keyboard > Settings > Basics
2.Either keep this password operations or change it with a 6 Number Password and remember it for the next operation

1 . Press “*”+”813”+”#” → verify Administrator pass code +”#” → “1”+”#” on the Keypad, and the Keypad enter Pairing Mode

1.On the Smart Lock Page click on the Remote icon
2.click “Add Remote”
3.Choose Permanent , add name and click on “Next” to add. Choose R1. You can use the Keypad to control the Lock.
